Shadow Study

Shadow Study is a great presentation tool for your client, the community, and the regulating authority.

Shadow Study standard specification

• Study time：8:00am～4:00pm or 9:00am～3:00pm
• Measurement level：1.5ｍ, 4.0ｍ or custom
• Measurement day：Winter solstice, equinox,summer solstice
• North latitude：any
• Calculation condition：True sun time
• Not adaptable for split zoned properties

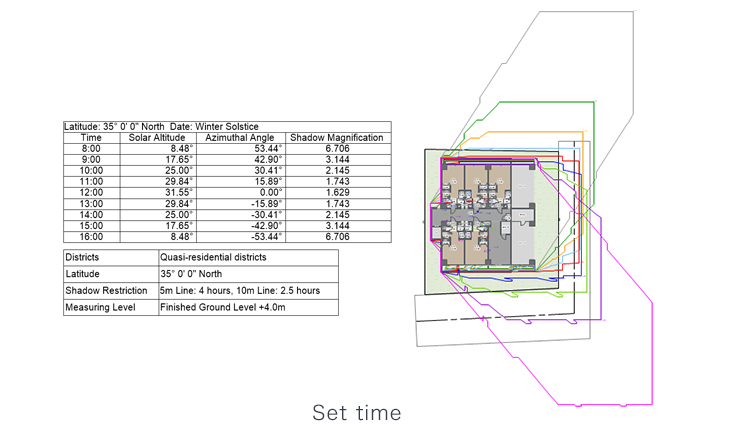

Shadow Study - Set time

Schedule; every 1 hour or 0.5 hours

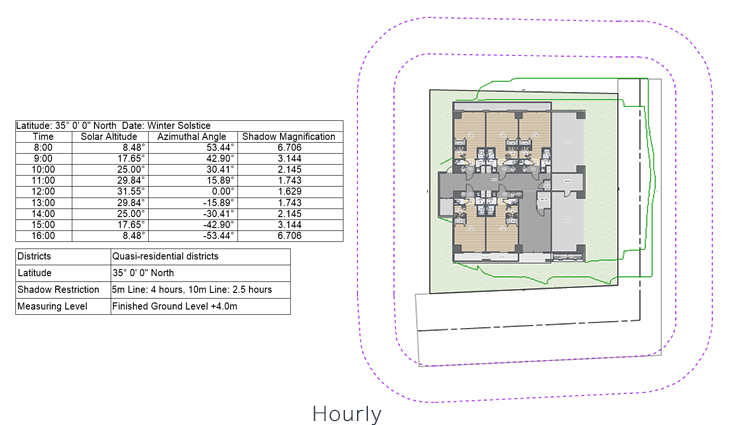

Shadow Study - hourly

• Interval : 1, 1.5, 2, 2.5, 3, 4, 5, 6, 7, 8 hours
• Method : Mesh generation(20cm)
• Calculation accurency ; 60 seconds

Auto Shadow Diagram

• Taking consideration of adjacent street width.
• Regulation of distance : 5m or 10m fixed
